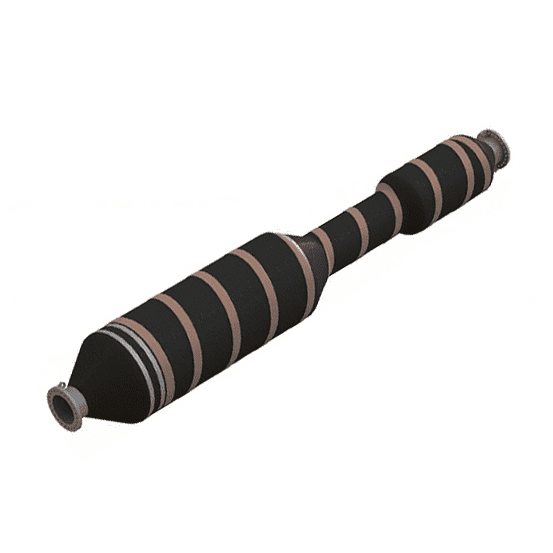

Get moving with Tanker Rail Barbell Buoyant Hose.
1. connecting aft manifold and tail hose
2. lifting lugs should be able to sustain loads, minimum breaking load is 12”=100KN 16”=150KN 20”=200KN
3. rated working pressure: 21 bar
4. minimum reserve buoyance: 20% or according to customer requirements
5. electrical continuity: electrical continuous or discontinuous
6. leak detection system: after the failure of the primary carcass, the detector will react to the leakage to remind the operator to remove the damaged hose to avoid economic loss and environmental pollution.
7. cover: PU or rubber
Specifications can be designed by customer requirements.
Tanker Rail Barbell Buoyant Hose Main Carcass:
Tanker Rail Barbell Buoyant Hose Floatation:
Tanker Rail Barbell Buoyant Hose Outer Cover:
Tanker Rail Barbell Buoyant Hose Fittings: End connections built in during manufacture. ASME B 16.5 Class 150lb or 300lb Weld Neck Flat Face or Raised Face on request.
Tanker Rail Barbell Buoyant Hose Tests: All tests according to GMPHOM 2009 and Customer detail.
