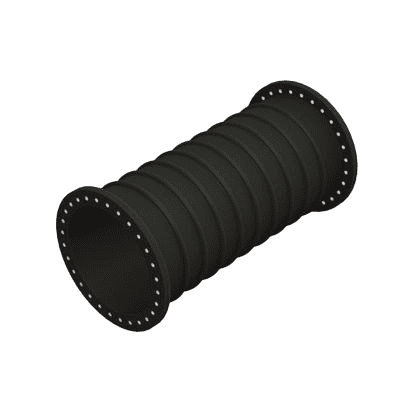

Suction and Discharge Hose

Category Mining Hose Tags discharge, natural rubber, slurry, suction

We offers extremely wear-resistant, flanged-end and cut-end hoses designed to provide superior performance in mining and industrial applications. JMTM hoses are designed to perform where others have failed. Material handling hoses are lined with TIPTOP REMA TECH or to extend service life, specifically in areas of high abrasion.

Additional information

ID Size	2 ~ 50inch
Length	2inch ~ 40ft
Working Pressure	-0.85 ~ 60bar
Wearlayer Hardness	38 Shore A, Nature Rubber, Red
Tensile Strength	24.5 N/m㎡
Elongation at break	830 %
Temperature Tolerance	-20 ~ 50℃

Product Detials:

Get moving with JMTM suction and discharge hose.

Discharge and suction hoses are suitable to transport slurry, with wall thickness of 25-60mm, can be used in the temperature of -20℃ to 50℃, and have good performance of wear and flexing resistance.

The suction hoses can be fitted with all the different types of flanges. They can be supplied in any size, and depending on the application, with 100% vacuum capability and high implosion pressures.

Discharge and suction hose structure diagram:
