Ball Valve

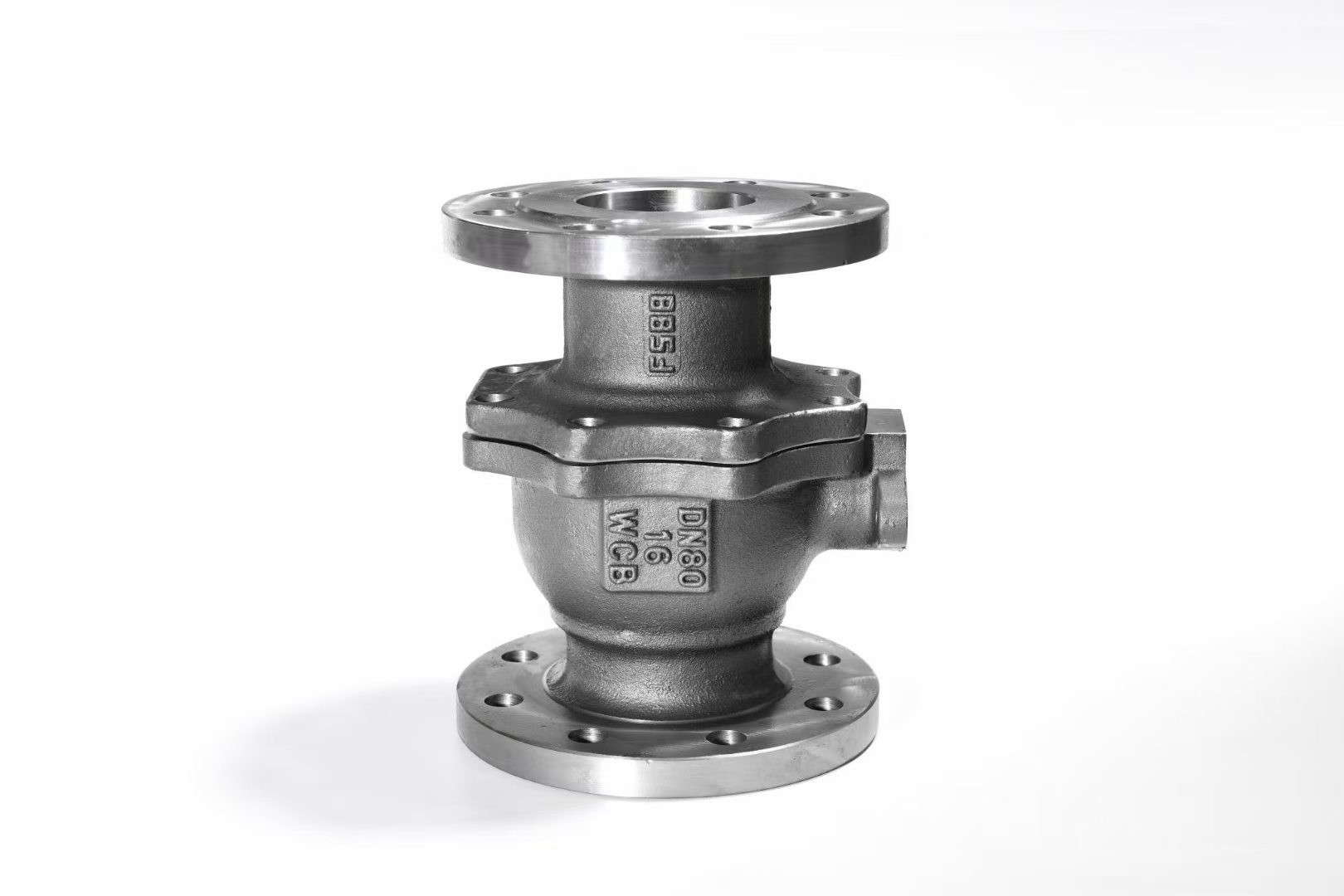

mmexport1654076702195

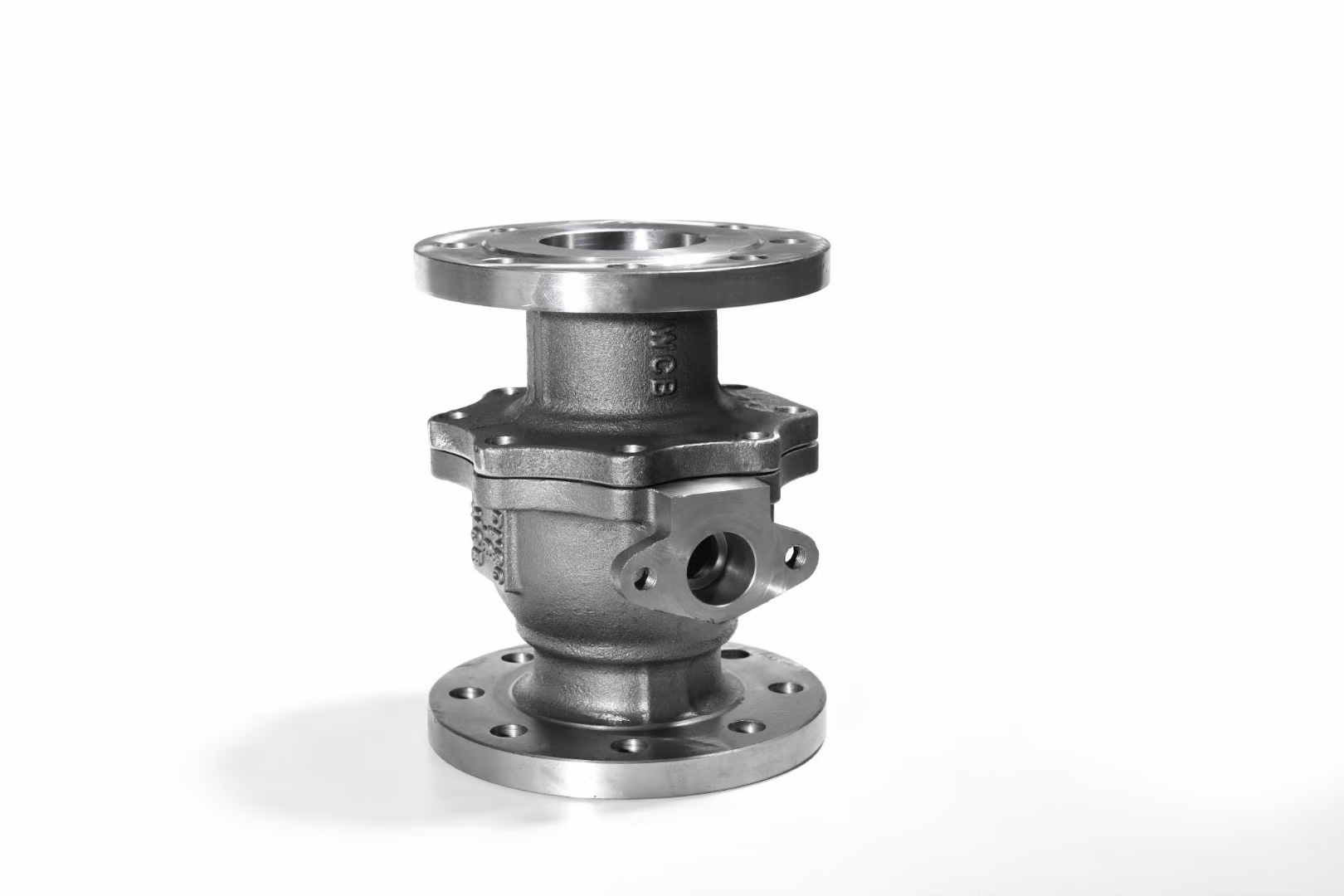

mmexport1654076704845

Category Valves Tags ball valve, valve casting

A split body Q41F ball valve with a floating ball and non-firesafe design suitable for a wide range of liquids and gas.

Additional information

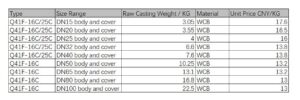

Size Range	DN15 ~ DN100
Working Pressure	PN16, PN25
Temperature Tolerance	-20°C to +180°C

Product Detials:

Get moving with JMTM Q41F ball valve.

The JMTM Q41F ball valve has a split body design with a full bore that allows unrestricted flow. It has a floating ball compressed between two resilient seats. The fluid keeps the ball suspended and pushes it against the seat to seal.

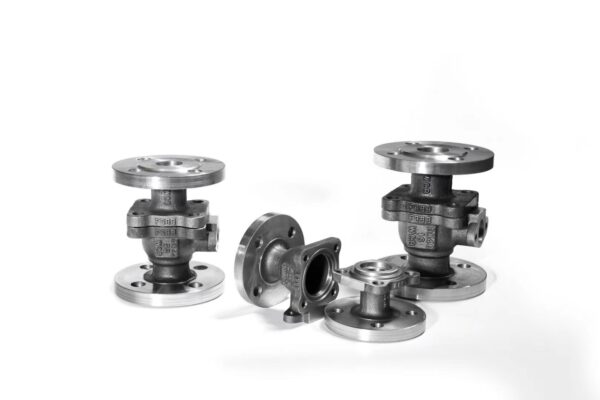

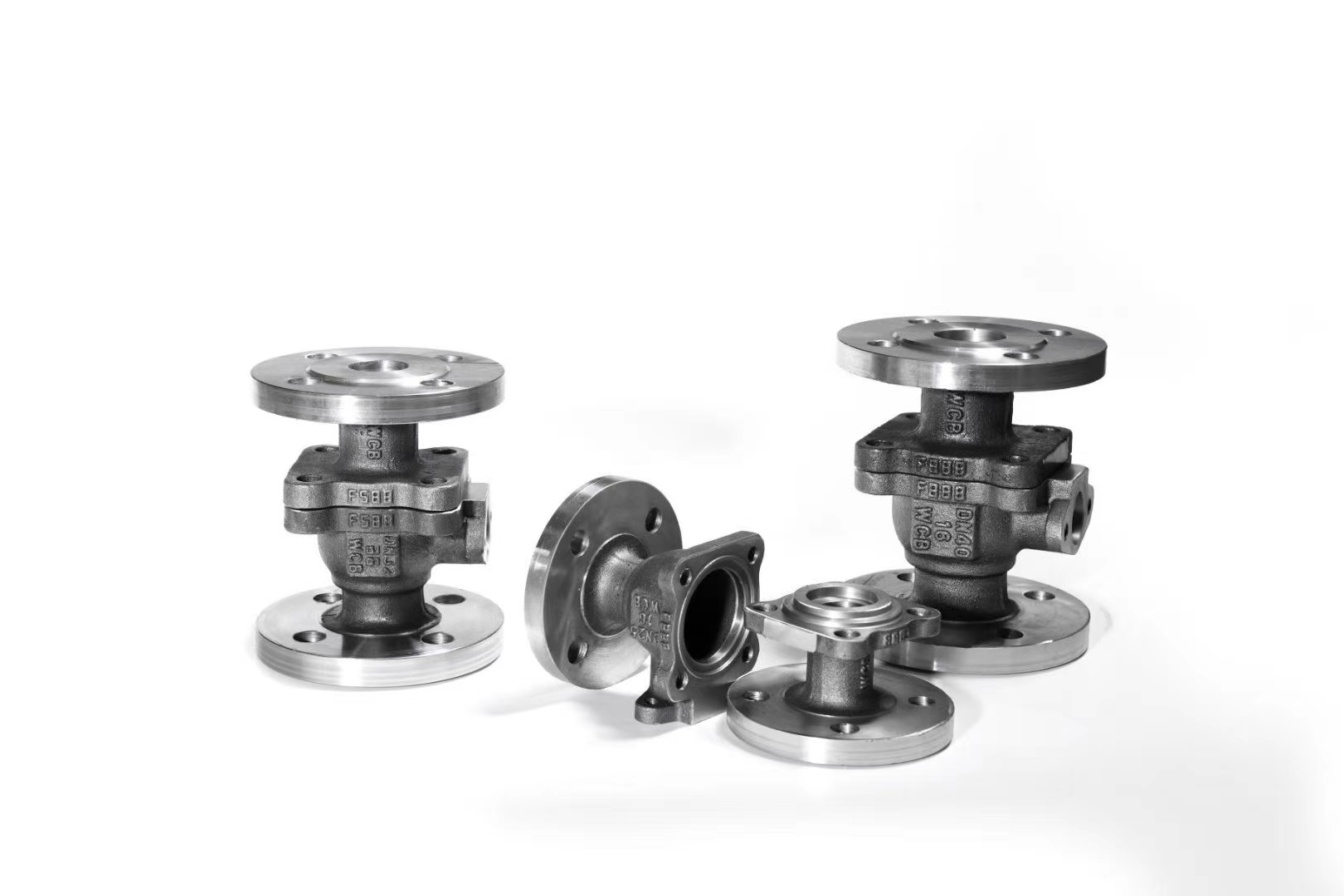

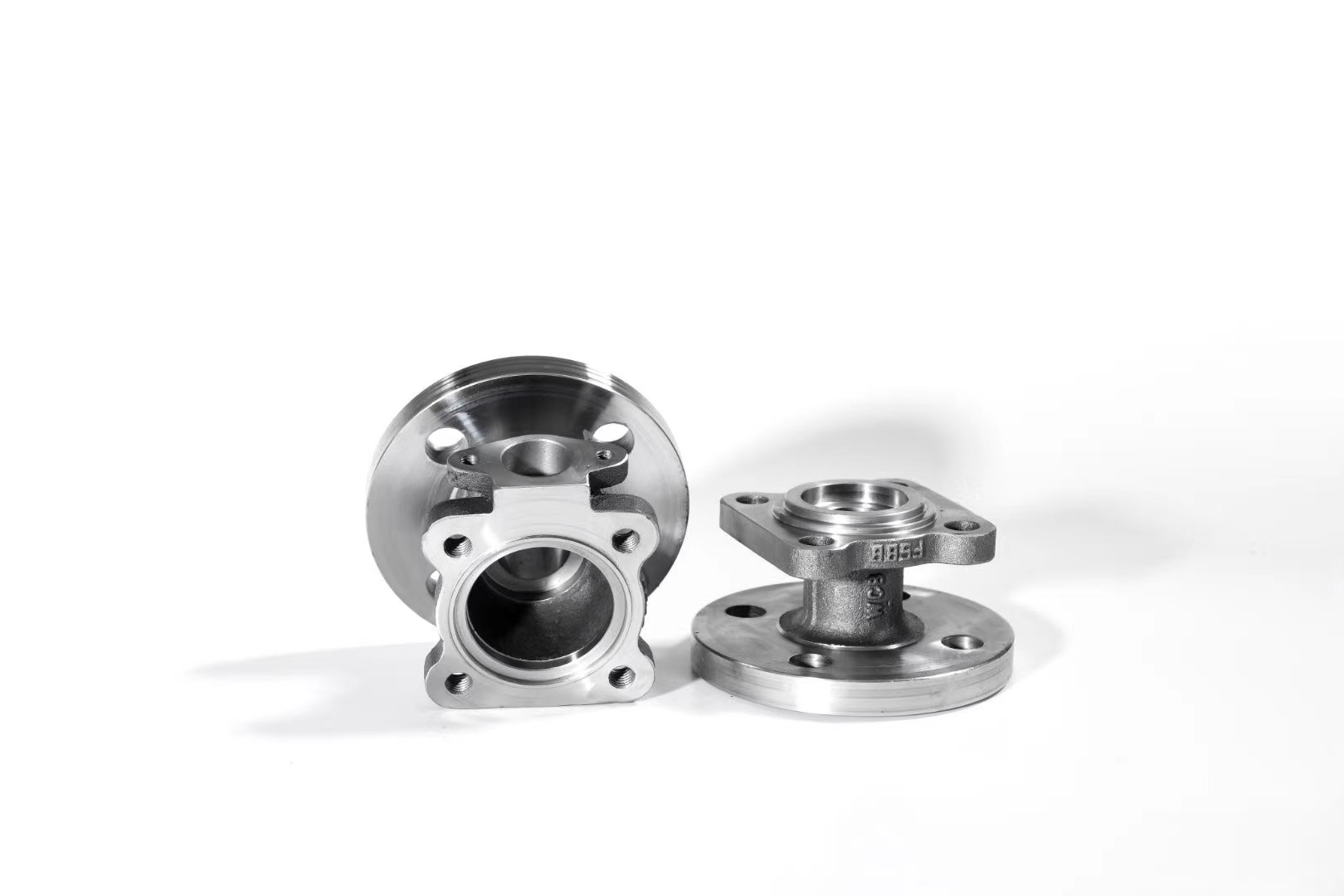

We are also pleased to provide ball valve components, like body casting for you to choose from.

Material specifications

Body and cap: WCB / CF8 / CF8M
Ball, stem, and gland: SS304 / SS316
Seat and packing: PTFE
Bolt, handle, and nut: S201 / S304
